Yiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness

Brand: Yiqiu3D · One electrostatic discharge can silently kill a circuit board or sensor — this conductive ABS is carbon-loaded to dissipate static safely, so electronic component trays, jigs, and fixtures you print protect the parts they hold instead of endangering them.

  • Its deep matte black appearance
  • Conductivity is achieved through tightly controlled carbon loading
  • Based on high-toughness modified ABS
Get a Quote Order on Alibaba →
Compare filaments
Diameter 1.75mm
Material ABS
Quick Answer

Why use conductive ABS for electronics and ESD applications?

Static discharge can damage sensitive electronics during handling. Conductive ABS is loaded with carbon so charges dissipate to ground instead of building up, making it the right material for ESD-safe trays, component holders, fixtures, and workbench organizers in electronics assembly and testing.

Full answers below

Is it right for my project?

Best for: Best for durable end-use parts needing impact strength plus heat tolerance, with vapour smoothing possible - 1kg spools; lead colour Conductive ABS Black /roll. Not ideal for: Avoid for food-contact or high-emission environments without proper ventilation - 1kg spools; lead colour Conductive ABS Black /roll.

Print settings

Nozzle 240-260°C

01 · Why this one

Product highlights

3 reasons

Its deep matte black appearance, typical of ESD compounds, prints clean professional parts with a uniform low-gloss surface that reads 'industrial' on any workbench or clean-room bench.

Conductivity is achieved through tightly controlled carbon loading, and every batch is verified for consistent formulation and laser-measured 1.75mm diameter — so ESD performance and print quality stay reproducible spool after spool.

Based on high-toughness modified ABS, it prints in the familiar ABS envelope: 220°C nozzle reference, 90-110°C bed, enclosure recommended, and runs on Bambu Lab, Creality, Prusa, and Anycubic machines with proper ventilation.

Up Close

Gallery

Product Images

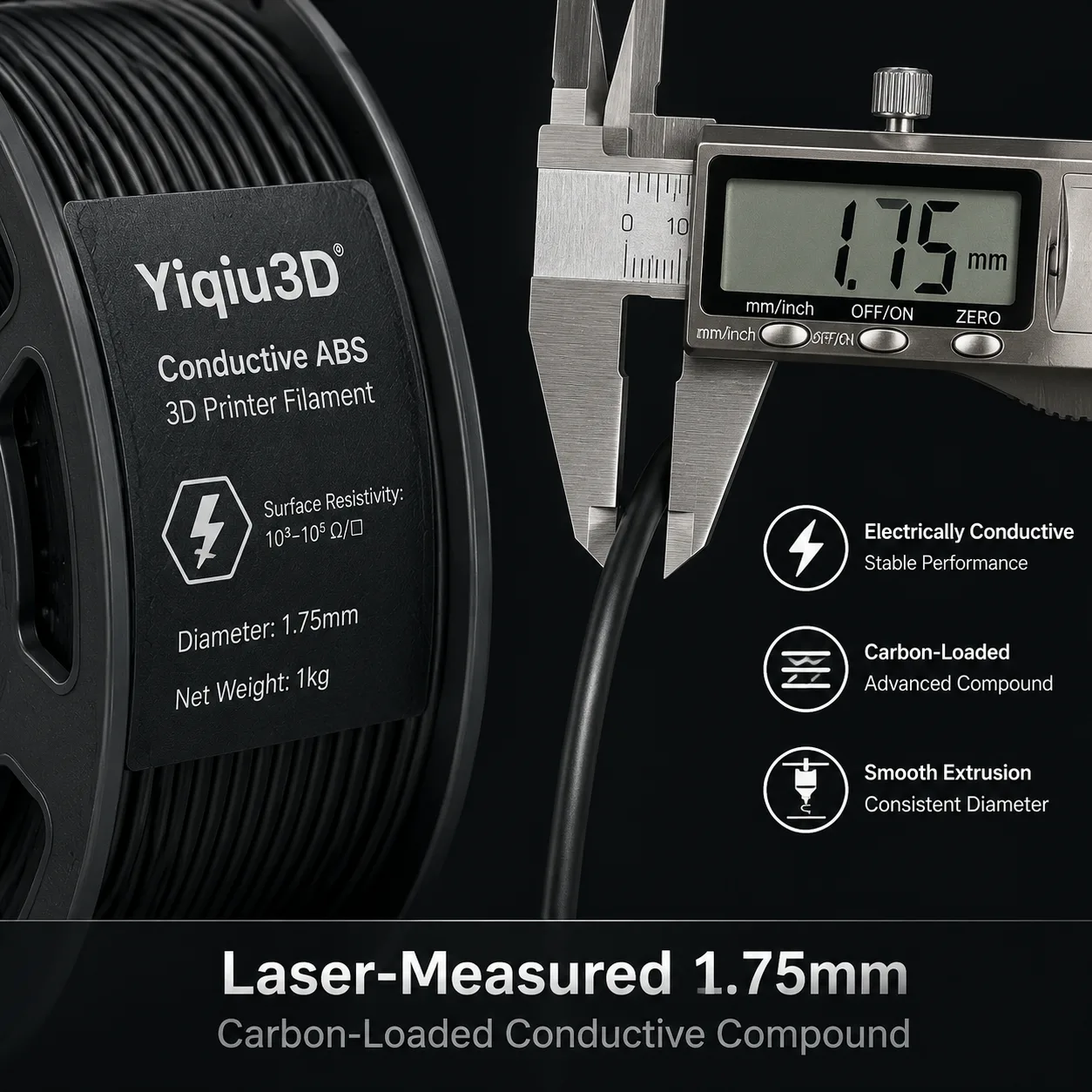

Yiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Product ImagesYiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Product ImagesYiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Product ImagesYiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Product ImagesYiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Product Images

Spec Sheet

Yiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Spec Sheet

Close-up

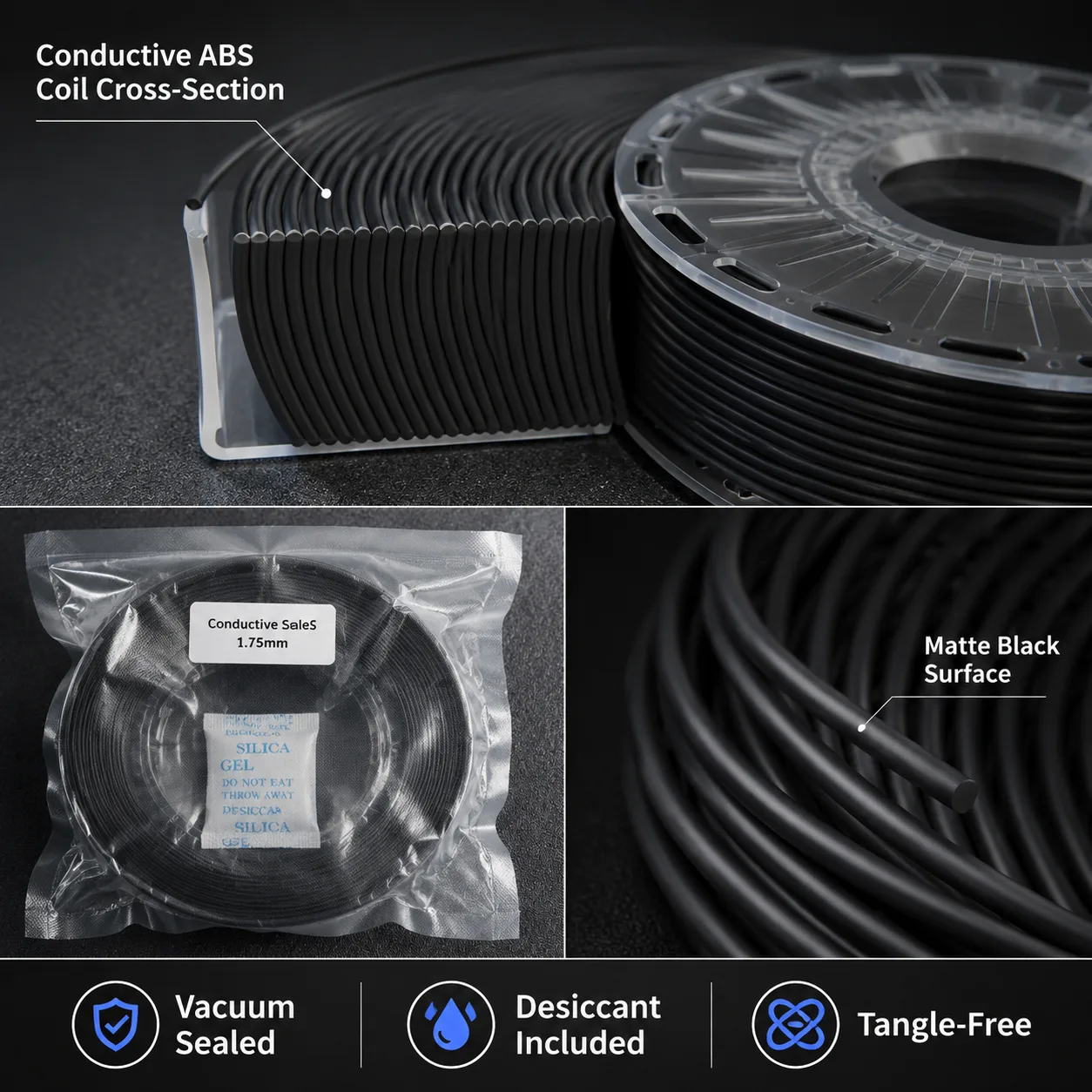

Yiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Close-up

Scene

Yiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness — Scene

Available Colors

Technical Data

Specifications

Diameter 1.75mm
Material ABS

Print Profile

Yiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness prints best at 240-260°C nozzle.

Nozzle Temp240-260°C

Spool Specification

Spool details for your feeding and handling setup.

Gross Weight1.35 kg
Spool Size (L×W×H)21 × 21 × 7 cm
Pack FormatKg

Attributes

Country / Regionchina
HS Code39169050
Item No.conductive-abs-filament-esd
Product Name Conductive ABS
3D Printing Consumables Application
No Grade
Conductive ABS Appearance
Cross-Section Round
Item No. Conductive ABS
3D Printing Material
Black Length
Before You Ask

Frequently Asked Questions

Why use conductive ABS for electronics and ESD applications?
Static discharge can damage sensitive electronics during handling. Conductive ABS is loaded with carbon so charges dissipate to ground instead of building up, making it the right material for ESD-safe trays, component holders, fixtures, and workbench organizers in electronics assembly and testing.
Will it print on my standard printer?
Yes, as 1.75mm filament it runs on any FDM printer with a heated bed — Bambu Lab, Creality, Prusa, Anycubic, and similar. Use an enclosure or draft shield for large parts, and ventilate the printing area as you would with any ABS.
What temperatures and settings should I use?
Start at a 220°C nozzle reference and adjust up to 240-250°C for stronger bonding; use a 90-110°C bed, slow first layer at 20-30mm/s, low cooling fan (0-30%), and a brim for large flat trays.
How much can I print from one 1kg spool?
One 1.75mm, 1kg spool holds roughly 330 meters — enough for dozens of small component trays, sensor housings, or fixtures, or 5-10 medium ESD organizers, depending on infill and wall settings.
What does the finished surface look like?
It prints in a deep matte black typical of ESD compounds, with a uniform low-gloss surface. Layer lines are subtle, and the surface can be lightly sanded for a smoother finish where needed — appearance is functional and industrial by design.
What print speed range should I use?
Print at 30-50mm/s for reliable layer fusion and consistent conductivity path integrity; keep the first layer at 20-30mm/s. Slower speeds also reduce the risk of warping on large tray geometries.
Is conductive ABS for prototypes or production?
Production. It is designed for functional, long-lived ESD tools — component trays, PCB holders, antistatic fixtures, and test jigs — not decorative prints, and its toughness keeps those tools working under daily shop-floor use.

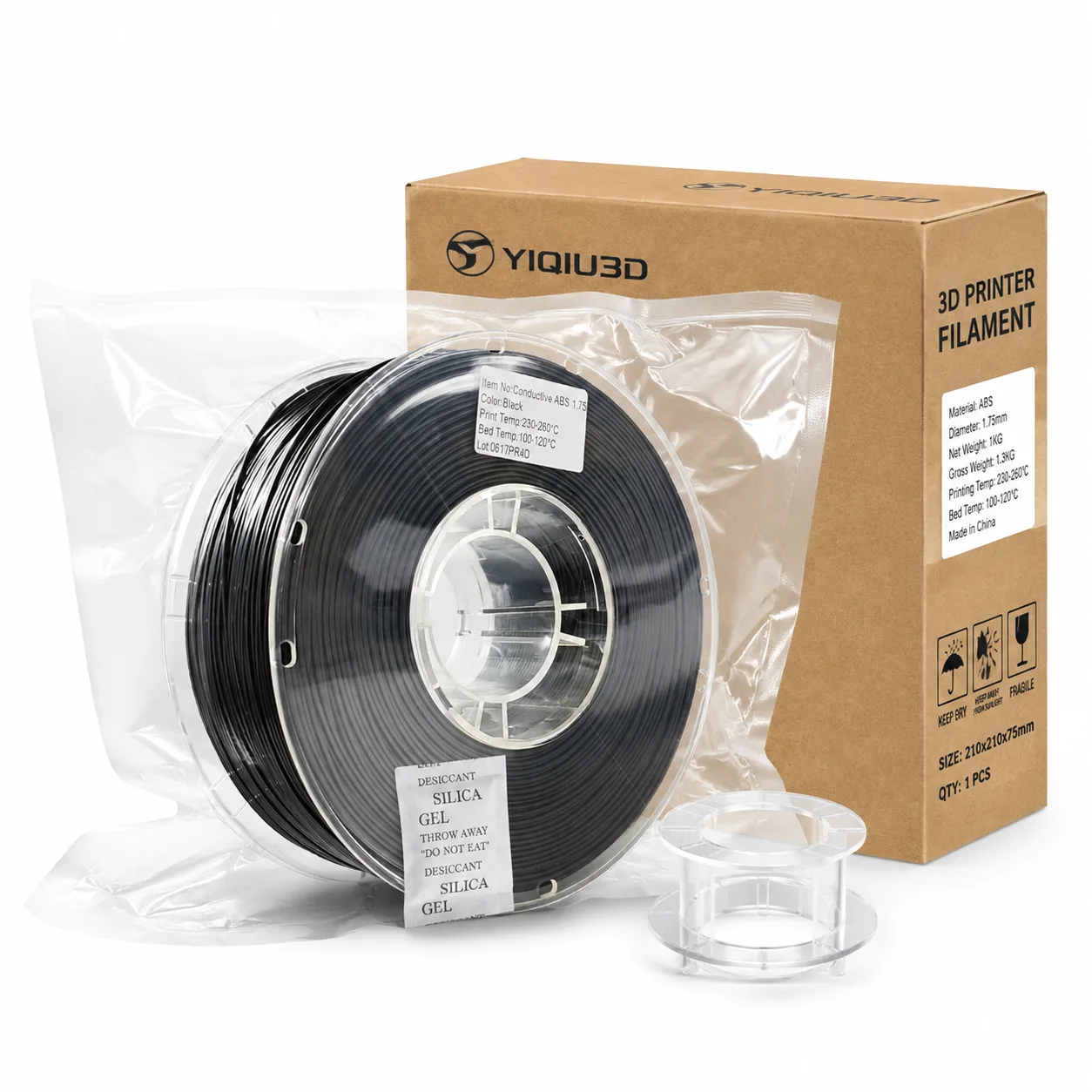

How is it packaged and stored?
Spools ship vacuum-sealed with a desiccant pouch in a moisture barrier bag. Store unused filament in the resealed bag or a dry box; keeping it dry preserves both print quality and consistent conductivity.

Documentation & Downloads

Everything we publish for this material, in one place.

Ready to Order

Get factory-direct pricing on Yiqiu3D Conductive ABS Filament 1.75mm 1kg ESD-Safe Anti-Static High-Toughness

Not sure this is the right material? → Compare filaments
Get a Tailored Quote Order on Alibaba →
