Factory Wholesale Carbon Fiber Nylon PA 1.75mm

Brand: Yiqiu3D · A nylon wear part rarely fails by breaking - it fails by wearing: a gear, slider or bushing loses a few hundredths of a millimetre per shift, the clearance opens up, and the mechanism binds while the part still looks intact. PA6-CF pairs nylon abrasion resistance and fatigue toughness with carbon-fibre reinforcement, so a printed part keeps its fit through repeated load. It is an industrial grade: run it with a hardened nozzle, and dry the spool before use.

  • Supplied in Nylon Carbon Fiber Black
  • PA6-CF requires an industrial high-temperature printer (all-metal hotend and heated chamber)
  • confirm the exact profile for your machine with us. A hardened nozzle is recommended
Get a Quote Order on Alibaba →
Compare filaments
Diameter 1.75mm
Material PA
Quick Answer

What does carbon-fibre reinforcement add to nylon?

Nylon on its own is tough and abrasion-resistant, but it is also flexible, absorbs moisture and moves slightly with humidity, so a thin gear tooth or a slider face can change fit in service. Short carbon fibre carried in the PA6 matrix raises stiffness and dimensional stability, so the printed part holds its geometry under load and through moisture cycles. That combination - wear resistance from the nylon and stiffness from the fibre - is why PA6-CF is used for gears, sliders, guides and tooling rather than for display parts.

Full answers below

Is it right for my project?

Best for: Suited to display models, teaching aids and short-run prototypes needing clean surfaces. Not ideal for: Not for food-contact or high-friction wear parts; choose PETG or a carbon-fibre grade.

Print settings

Nozzle 190-220°C

01 · Why this one

Product highlights

3 reasons

Supplied in Nylon Carbon Fiber Black, the carbon-filled black that hides tool marks on a working part. Nylon is tough but takes up moisture and can move in service, and the fibre reinforcement is what holds the geometry between two identical prints - which is what matters when a printed gear has to mesh on the same shaft every time. Tell us the packing option you need and we confirm it on the order, with the swatch held for your repeat runs.

PA6-CF requires an industrial high-temperature printer (all-metal hotend and heated chamber)

confirm the exact profile for your machine with us. A hardened nozzle is recommended, because carbon-fibre filled filament abrades a brass orifice, and the spool must be dried before use - nylon pulls moisture out of the air, and a wet strand foams at the nozzle and gives a weak, porous wall. Print from a dry box on long runs.

Up Close

Gallery

Product Images

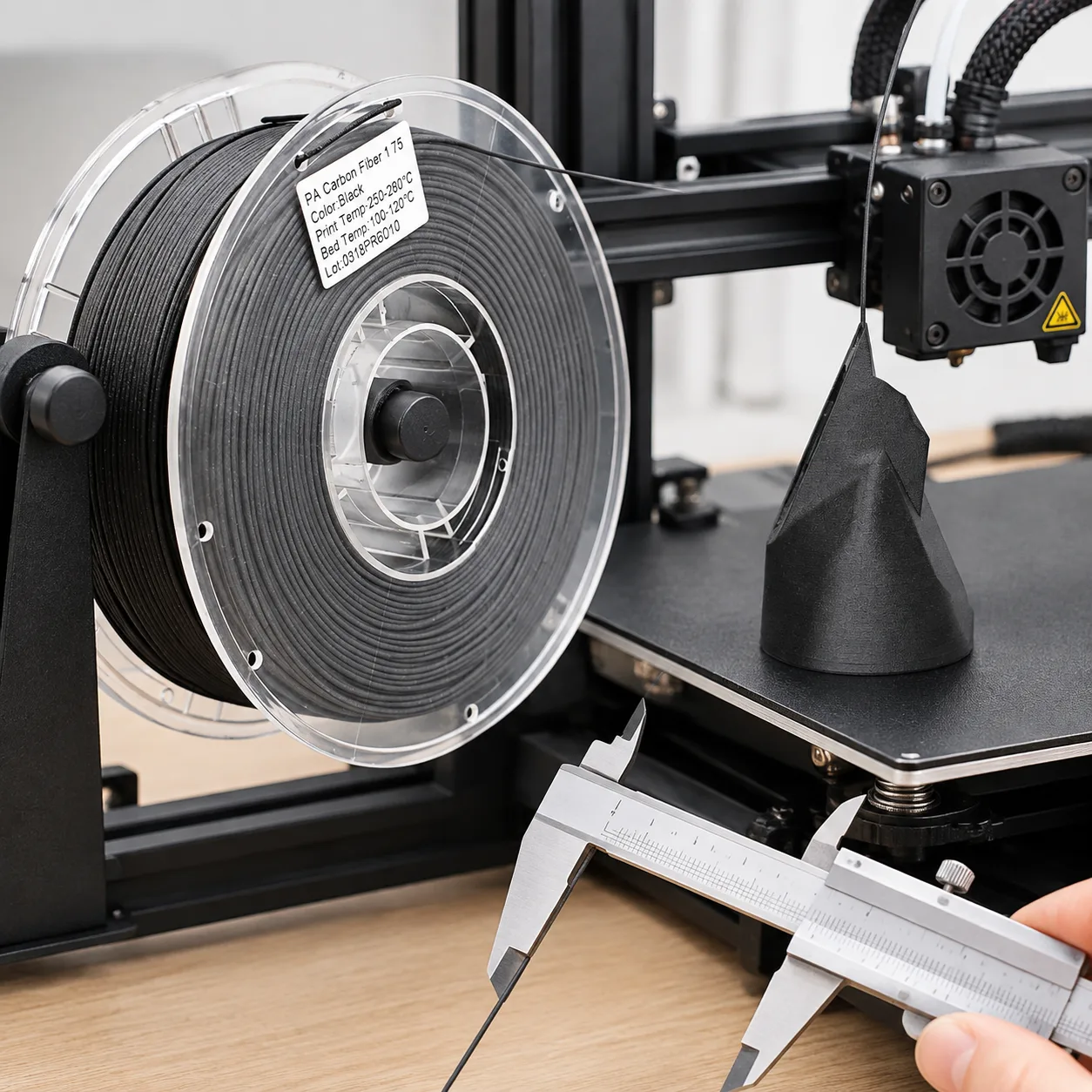

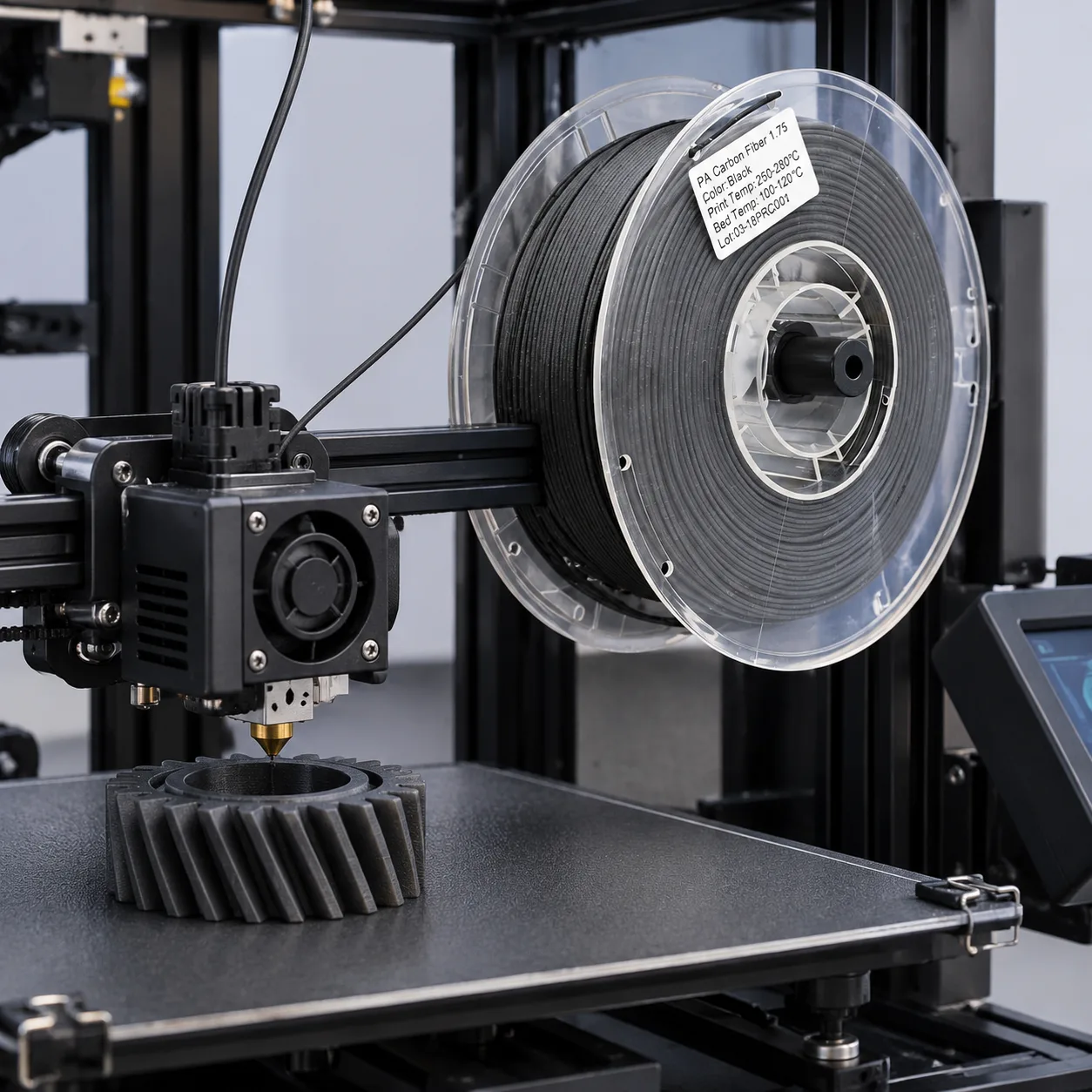

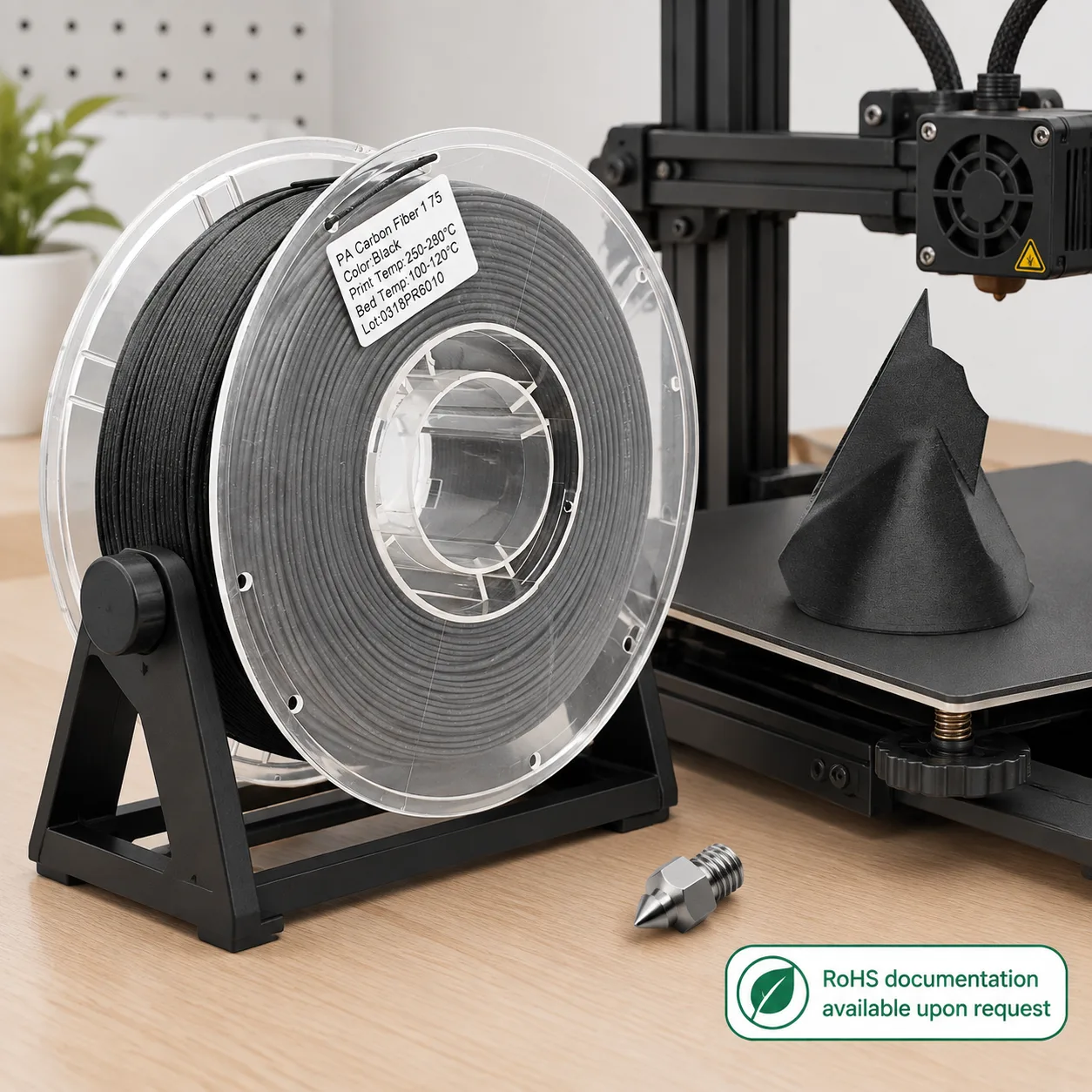

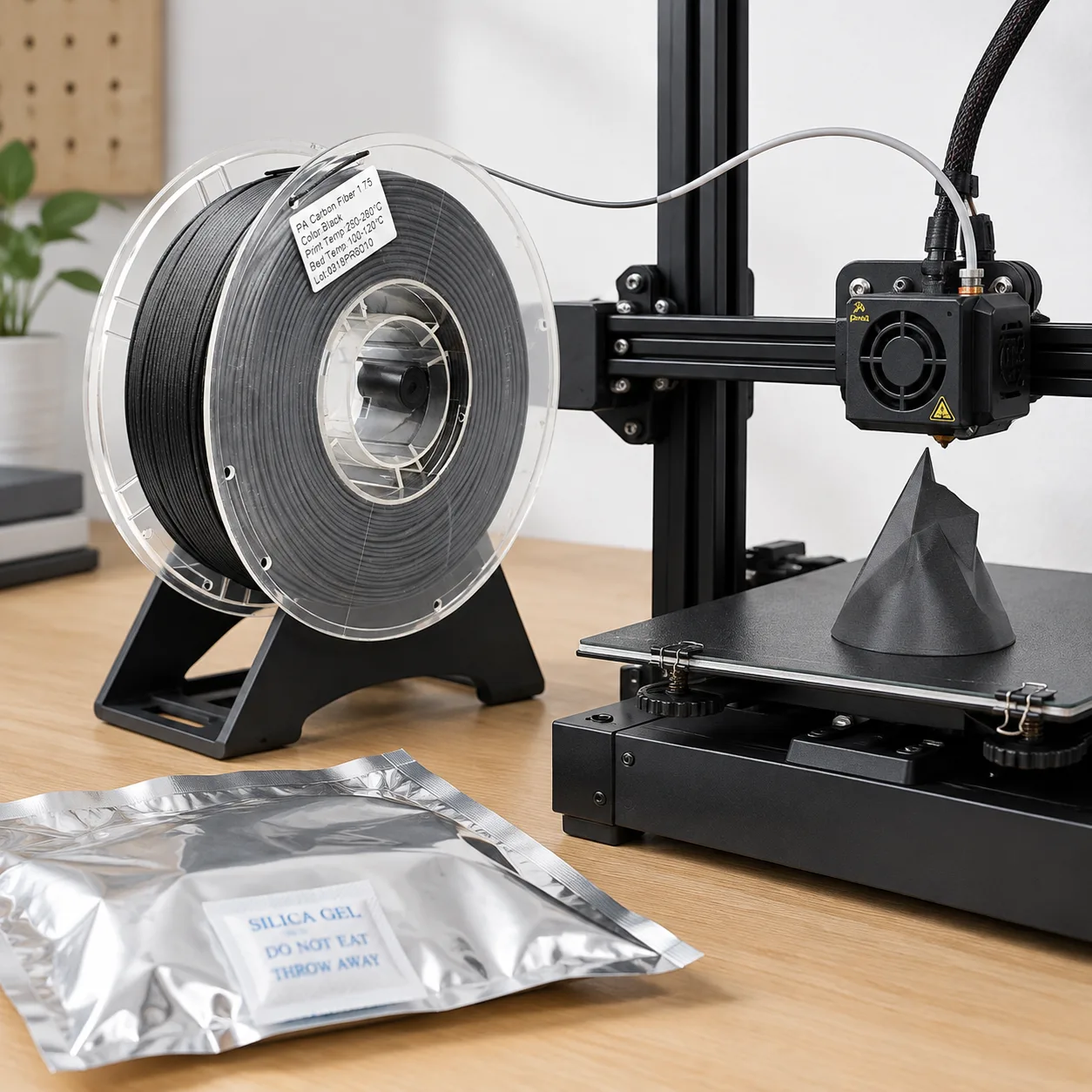

Factory Wholesale Carbon Fiber Nylon PA 1.75mm — Product ImagesFactory Wholesale Carbon Fiber Nylon PA 1.75mm — Product ImagesFactory Wholesale Carbon Fiber Nylon PA 1.75mm — Product ImagesFactory Wholesale Carbon Fiber Nylon PA 1.75mm — Product ImagesFactory Wholesale Carbon Fiber Nylon PA 1.75mm — Product ImagesFactory Wholesale Carbon Fiber Nylon PA 1.75mm — Product Images

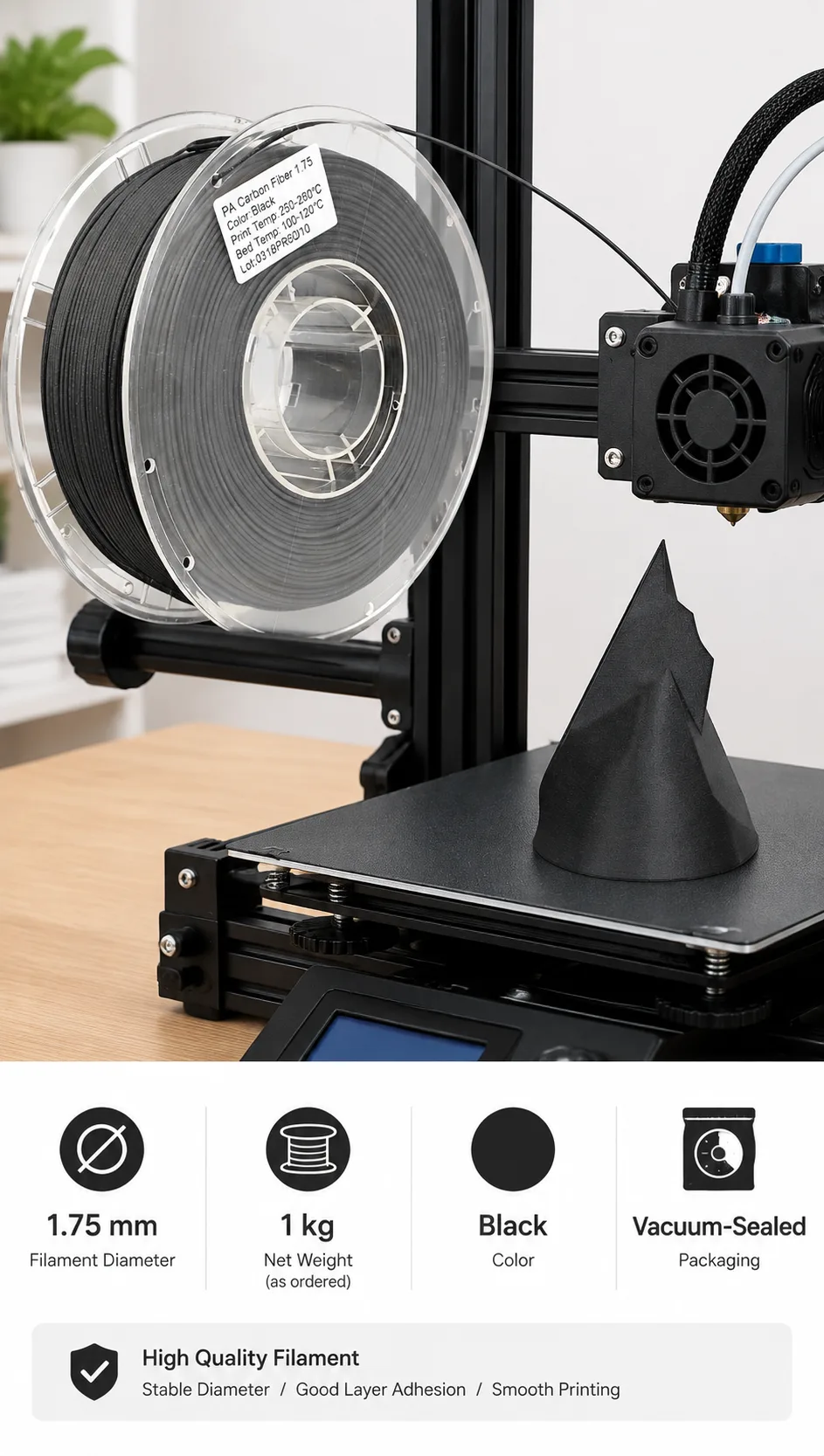

Spec Sheet

Factory Wholesale Carbon Fiber Nylon PA 1.75mm — Spec Sheet

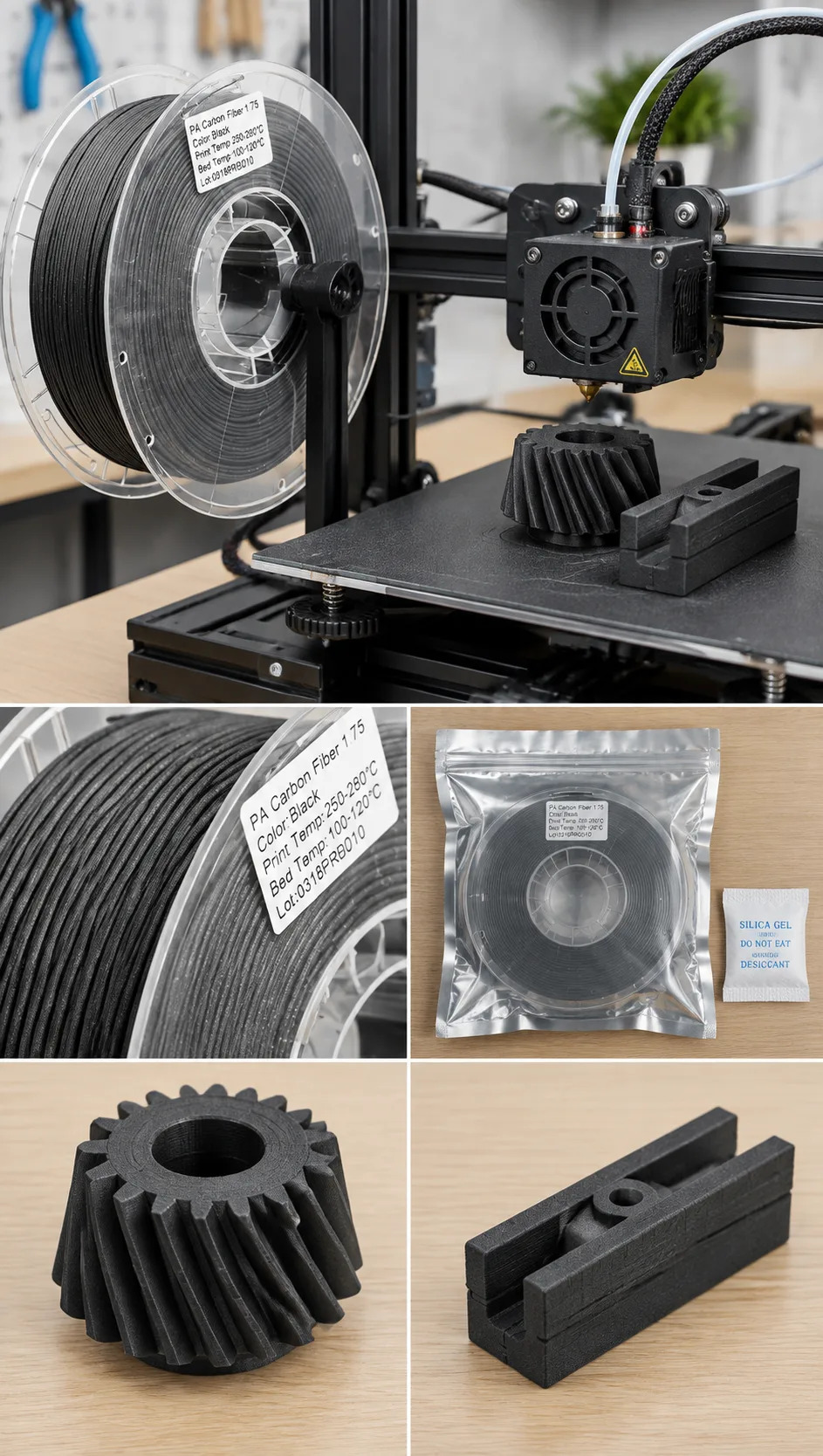

Close-up

Factory Wholesale Carbon Fiber Nylon PA 1.75mm — Close-up

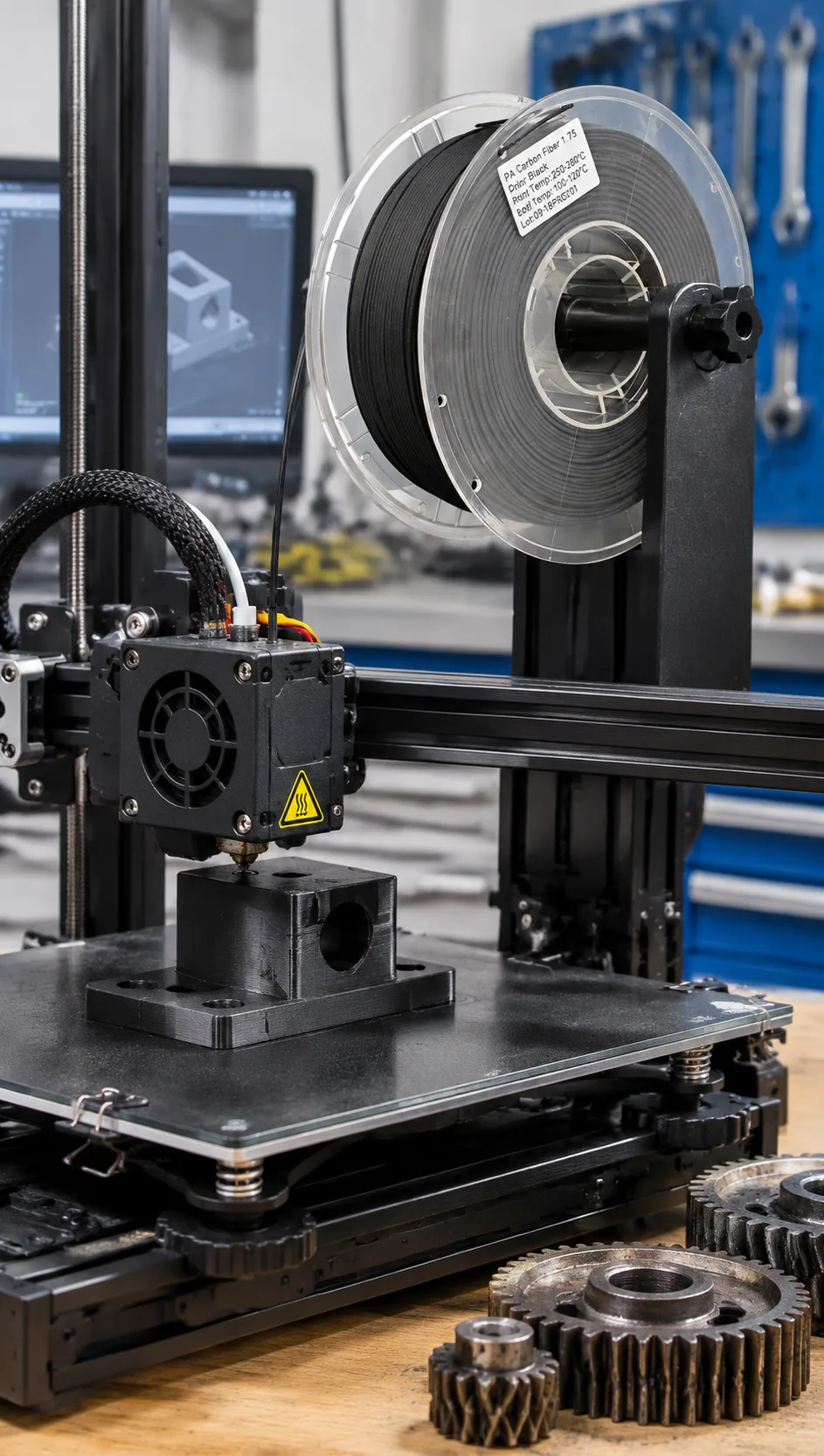

Scene

Factory Wholesale Carbon Fiber Nylon PA 1.75mm — Scene

Available Colors

Technical Data

Specifications

Diameter 1.75mm
Material PA

Print Profile

Factory Wholesale Carbon Fiber Nylon PA 1.75mm prints best at 190-220°C nozzle.

Nozzle Temp190-220°C

Spool Specification

Spool details for your feeding and handling setup.

Gross Weight1.3 kg
Spool Size (L×W×H)21 × 21 × 7 cm
Pack FormatPiece
Spool TypeRound Spool

Attributes

Country / Regionchina
HS Code无对应匹配项，留空。
Item No.carbon-fiber-nylon-pa-rigid-impact-resistant
Diameter 1.75mm
Appearance Round Spool
Diameter 1.75mm
Appearance Round Spool
Scenario Bridge

Perfect for these projects

Jigs & Fixtures That Survive the Production Floor

View solution →

Consistent Filament Across 50+ Printers — From First Spool to the Last

View solution →
Before You Ask

Frequently Asked Questions

What does carbon-fibre reinforcement add to nylon?
Nylon on its own is tough and abrasion-resistant, but it is also flexible, absorbs moisture and moves slightly with humidity, so a thin gear tooth or a slider face can change fit in service. Short carbon fibre carried in the PA6 matrix raises stiffness and dimensional stability, so the printed part holds its geometry under load and through moisture cycles. That combination - wear resistance from the nylon and stiffness from the fibre - is why PA6-CF is used for gears, sliders, guides and tooling rather than for display parts.
Which printers can run this filament?
This is an industrial high-temperature grade: it requires a printer with an all-metal hotend and a heated chamber, and we do not offer it as an open-frame desktop material. Confirm the exact profile for your machine with us before ordering. A hardened or steel nozzle is recommended, because carbon-fibre filled filament wears a brass orifice quickly, and a dry box or dry cabinet on the machine makes a real difference to wall quality on long prints.
What print parameters do you recommend?
PA6-CF requires an industrial high-temperature printer (all-metal hotend and heated chamber); confirm the exact profile for your machine with us. We do not publish a fixed nozzle or chamber figure for it, because what works depends on your hotend, chamber, nozzle size and part geometry, and this material punishes a profile copied from PLA or PETG. Dry the spool before use, print a test coupon first, and send us your machine and part details so we can confirm a realistic starting point.
How much filament is on one spool?
Net weight is confirmed on your order. The figure on the carton is gross weight, which includes the spool and the sealed bag, so we do not publish it as a net figure. Tell us the weight you need and we confirm it against your order and the packing list. We do not quote a metre figure for this grade, since usable length varies with formulation and winding tension; take the length from your slicer estimate for the actual part.
Which colours are available, and is colour consistent between batches?
This grade is supplied in Nylon Carbon Fiber Black. Carbon-filled nylon is bought for mechanical properties, so the colour is part of the compound rather than a cosmetic shade choice, and we do not offer a swatch range for it. Where repeat orders have to feed one production run, tell us the quantity and we will reserve material from a single production batch and confirm the batch in writing with the order.
What are the typical applications for PA6-CF?
Parts that slide, mesh or take repeated load: gears, sliders, guide blocks, bushings and wear pads, machine jigs and fixtures, brackets and mounts, tooling and functional end-use parts that replace a machined plastic item. It also suits parts that must survive handling in a workshop rather than sit on a shelf. It is not a cosmetic material, and we make no food-contact claim for this grade; RoHS documentation is available upon request.
How is the filament packed, and how should it be stored?
Every spool is vacuum-sealed with a desiccant sachet inside a sealed foil bag, so it arrives dry. Store unopened spools cool and out of direct sunlight, and once the bag is opened keep the spool in a dry cabinet or a sealed container - nylon takes up moisture from the air faster than most materials. Dry the spool before use: a wet strand foams at the nozzle, gives a porous, weak wall and loses the wear properties the grade was bought for. Print from a dry box on long runs.

Documentation & Downloads

Everything we publish for this material, in one place.
